Container Specifications, Dimensions and Measurements

Notes

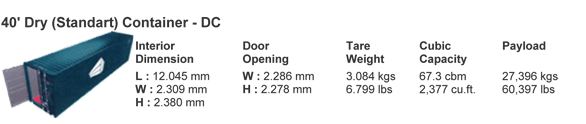

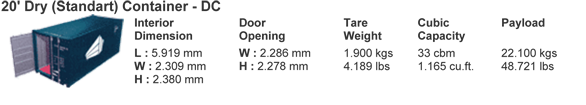

• DRY type of container is for general cargo. General cargo should not be over-length, over-width, over-height, over-weight, or in bulk.


• Containers are constructed of steel for sturdiness and ease of repair.


• 45ft containers are not generally available in all the trades .

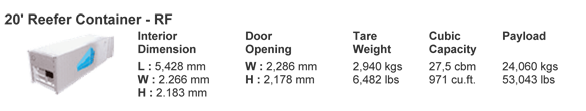

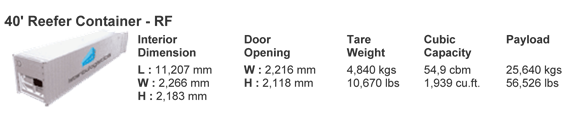

• Reefer type of container is capable of maintaining the temperature of frozen, chilled or warm cargo. A refrigeration unit is built onto the nose of the container and power is provided by a motor generator (when container is on wheels), by terminal (when grounded in a yard) or by the ship (when laden on board).


• Air, cold or warm, is supplied to the inside of a container via an air duct system that enters the container from the bottom. Air circulates under, over and through the load before it returns to the refrigeration unit. This circulation is repeated continuously when the unit is in operation.

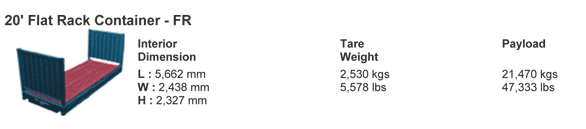

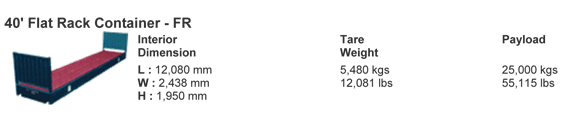

• Flat racks are best suited for stowage of heavy lift, over-height and/or over-width cargo. Flat racks have collapsible end frames. Lashing rings on the bottom side rails, corner posts and floor are available to enable cargo to be secure using straps or chains.

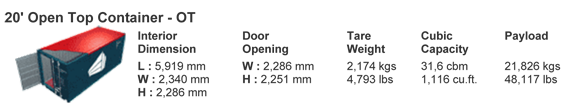

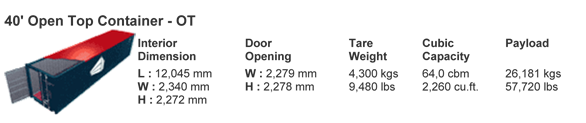

• Open tops do not have a solid roof; instead they are covered with a removable, weatherproof tarpaulin that can be secured with ropes. The metal beam above the door can be opened to the right or left and can also be dismantled from the container. Lashing rings at the inside base of the container are used to secure and prevent shifting of cargo during movement. This type of container is suitable for over-height and/or lengthy cargo.
